Ziptrak® blinds connect your indoor and outdoor environments into one harmonious space.

Ziptrak® outdoor blinds instantly create a brand new space in your home, ready to entertain family and friends at a moments notice. Protected at any time of the year, with a sense of seclusion and sanctuary, you’ll spend more time enjoying life outdoors.

The Ziptrak® patented Track-Guided Blind System with its unique spline binding creates a gapless barrier on all sides of each blind – keeping out dust, wind, rain and insects. Our design also presents a safe environment for children and pets with no cords, crank handles, zips or external wiring.

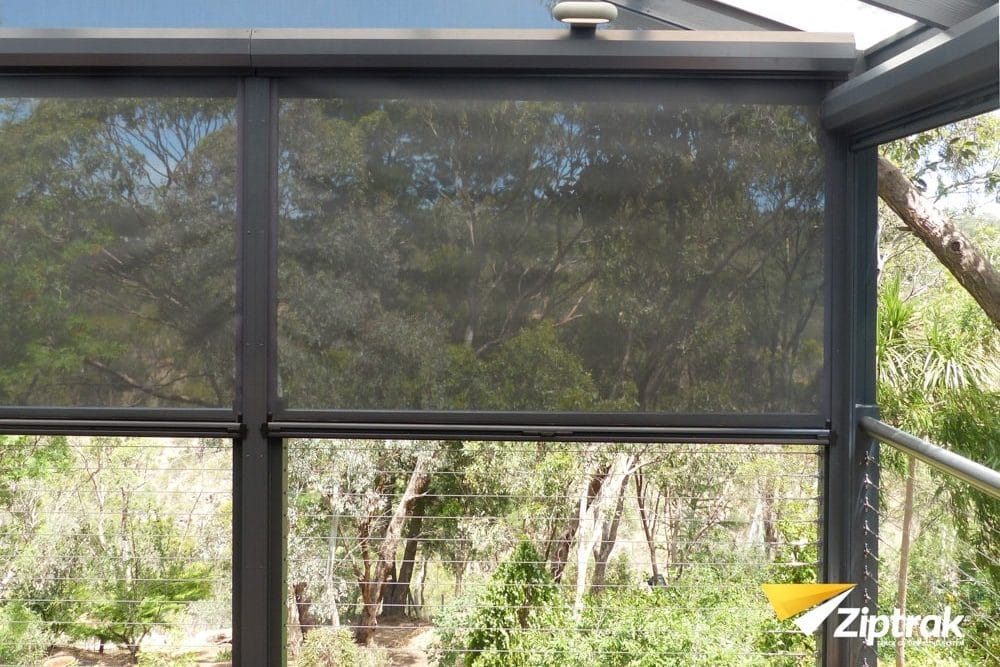

Ziptrak Outdoor Blind Close Up
Ziptrak Outdoor Blind with Bush Outlook
Ziptrak Outdoor Blind
Ziptrak Outdoor Blind Newcastle

Maximise the use of your outdoor space

Spend more time with family and freinds enjoying the outdoors regardless of the weather. Ziptrak blinds help you extend the use of your outdoor entertainment areas by capturing warmth during the winter months and allowing fresh breezes to flow through during summer.

Ziptrak creates a barrier from weather, insects, dust, leaves and other debris and reduces the time spent on cleaning and maintenance of your outdoor area and furnishings.

The unique design combination of the Ziptrak blind system with a Streamline Pelmet containing our Insect Control System adds an additional barrier that other outdoor blinds cannot offer.

Effortless smooth operation

Ziptrak® Spring-Balanced technology permits effortless smooth operation. Simply push the blind up or pull the blind down and your Ziptrak® blind will stay where you leave it. You can also lock your blind into place by pushing down into the lowest position and engaging the Ziptrak Centre-Lock-Release mechanism. To unlock, lift the handle to activate the release latches and lift.

Optional motorisation is also available – with remote control instead of manual operation, useful for multiple blind applications or installations in hard to reach locations like outside of windows or heights.

Ziptrak Newcastle Features

Made to order sizing

Maximum Size of Ziptrak Blinds

Each Ziptrak blind is custom made and installed to your individual needs and specifications. With a wide variety of colour options, styles and features available to match or complement your outdoor space.

Need a larger blind or would like to include a doorway? Ask about the Ziptrak Removable Post System.

Select the skin type

Ziptrak Mesh Options

Sunscreen Mesh - Privacy and Protection

Provides a high degree of privacy, reduces sun glare, and allows airflow. For year-round protection from the harsh weather – with up to 99% UV and 96% wind block.

Ziptrak PVC

Clear PVC - Uninterrupted Views

Allows for maximum views and rain protection. Keeps the warmth in during winter while blocking up to 93% UV

Select the hardware colour

Hardware Colour for Ziptrak

Ziptrak aluminium componentry is readily available in six colours or can be powder-coated to any conceivable colour to match the décor of your existing outdoor area.

The hardware is available in a range of Colorbond colours. Standard colours are Black, Cream. Monument, Paperbark, White and Woodland Grey. Other Colorbond colours are available at an additional cost.

Choose from the Pelmet or Bracket options

Streamline Pelmet Ziptrak

Streamline Pelmet with Insect Control System

Provides exceptional protection from the elements, ensuring your blinds look great and operate flawlessly for years.

Traditional Pelmet Ziptrak

Traditional Pelmet

Conceals and protects the blind when retracted.

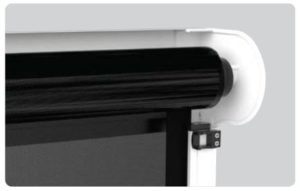

Cast Braket with Flushing on Ziptrak Blinds

Cast Bracket with Back Flashing

Hides the blind from view on one side only.

Cast Braket Ziptrak

Cast Bracket

Holds the blind in place but leaves it unprotected from the elements.

Choose from the Bottom Bar Weather Protection options

Standard Weather Strip for Ziptrak
Standard Weather Strip (15 mm)

Provides superior weather protection while closing gaps effectively.

Ziptrak Large Weather Strip
Large Weather Strip (30 mm)

Blocks weather and other debris when large gaps are present..

Custom Skirt on Ziptrak Blinds
Custom-Made Skirt

For acutely sloping surfaces your retailer can offer a custom-made skirt.

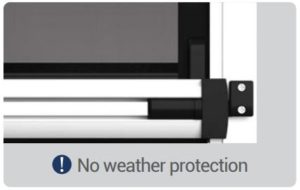

Basic Strip for Ziptrak Blinds
Basic Bottom Bumper

Prevents surface damage but does not provide weather protection.

Ziptrak Blind Operation

Front Handle on Ziptrak Blind

Front Handle

Lock your blind in place when fully down (closed).

Reverse Handle for Ziptrak Awnings

Reverse Handle

Add an extra handle to unlock the blind from the other side.

Pull Stick for Ziptrak

Pull Stick

Request a pull stick to avoid reaching up high or bending low to operate your outdoor blind.

Ziptrak options specifications chart

Charts represent the Ziptrak® system with the blind a lowered position (closed).

Skin Type UVR Protection Rain Protection Wind Protection^ Privacy Clear Views Dust and Leaves Insect Control
Sunscreen Mesh^^
High
Medium *Up to 97%
Medium
High
Low
Medium
High
PVC^
Medium - Up to 93%
High
High
Low
High
High
High
Pelmet or Bracket Rain Protection Wind Protection^ Dust and Leaves Insect Control
Streamline Pelmet
High
High
High
High
Traditional Pelmet
High
High
Medium
Medium
Cast Bracket (no pelmet)
Low
Low
Low
Low
Bottom Bar Weather Protection Rain Protection Wind Protection^ Dust and Leaves Insect Control
Large Weather Strip (30mm)
High
High
High
High
Standard Weather Strip (15mm)
High
High
High
High
Custom-Made Skirt
Medium
High
Basic Bottom Bumper
Low

FAQ

Most frequent questions and answers

In windy conditions, Ziptrak® blinds should be left down and locked, or fully retracted – half way is the most vulnerable position. During severe weather events, your blinds should be fully retracted.



You may find Ziptrak® spring-balanced blinds are a little tricky to operate during windy conditions due to the pressure of the wind on the blind material. Use your hand to push against the blind material to reduce this pressure and then operate the blind.



Care must be taken when operating motorized Ziptrak® blinds in windy conditions. They must be supervised whilst raising and lowering at all times.



If the fabric blows out of the channels during windy conditions we are happy to do a service call to fix up but it is not covered by the products warranty and will be chargeable

The bottom bar locks into position with two locks at the bottom left and bottom right in order to keep the blind fully down and secured. If you are outside of the outdoor area and you would like to be able to unlock the blind, a “reverse lock” addition  is available to the centre-lock-release system. This will allow you to operate the centre-lock-release which faces the inside of your entertaining area, although you are on the outside.



These locks are not designed for use as a security measure. The blind system should not be used as barriers for babies or children. The centre-lock-release mechanism is not child proof.

Hose down with clean water a couple of times a year to wash off any dirt or salt residue in particular.

A mesh fabric is used to make these blinds, the rain is very much slowed down but they are not 100% waterproof, particularly if the rain is horizontal.

Classic Blinds & Shutters recommended maximum dimensions for Ziptrak® blinds are 4000mm wide by 3500mm high. Smaller Ziptrak® blinds may look neater, and will be easier to operate.

Yes, but you will need to divide the opening using either a fixed or removable post. The removable post offered by Ziptrak Pty. Ltd., once removed, will not protrude into the opening more than the Ziptrak® blinds

The patented and unique design of the Ziptrak® system is intended to be spring-loaded, which makes the operation of them simpler and easier compared to a crank handle. Therefore, we do not recommend to have Ziptrak® blinds operated with a crank handle.

Yes. Ziptrak Pty. Ltd. offers a fully enclosed aluminium pelmet, offering a rust-free solution perfect for outdoor use. This is available in our standard range of colours, or can be powder-coated to any choice of colour. The pelmet will protect the blind material for increased longevity and provides a more subtle installation appearance.

Only Ziptrak® blinds with Sunscreen Mesh can be motorised, using 240V/AC tubular motor with obstacle detection feature. The SolarSmart™ motor system is also recommended and fully compatible with a Ziptrak® blind. Strong wind can hold the skin of a Ziptrak® blind preventing it from sliding down the tracks, therefore, we recommend that motorised Ziptrak® blinds be supervised by the operator while they are moving.

Flexible PVC used as skin for Ziptrak® blinds becomes stiff in cold weather, this stiffness will prevent the skin to slide down the Ziptrak® tracks as it is maintaining its shape when it was on the top keyway tube. The PVC stiffness is not a problem with a manually operated Ziptrak® blinds, but in a motorised Ziptrak® blind, the weighted bottom rail cannot always overcome the PVC’s stiffness.

We recommend to use 0.75mm thick clear or tinted PVC for Ziptrak® blinds. 1mm thick PVC can be used too, however, there is no advantage using 1mm thick PVC in our opinion, and with larger Ziptrak® blinds it can even be a disadvantage, because of the 1mm thick PVC is heavier.
